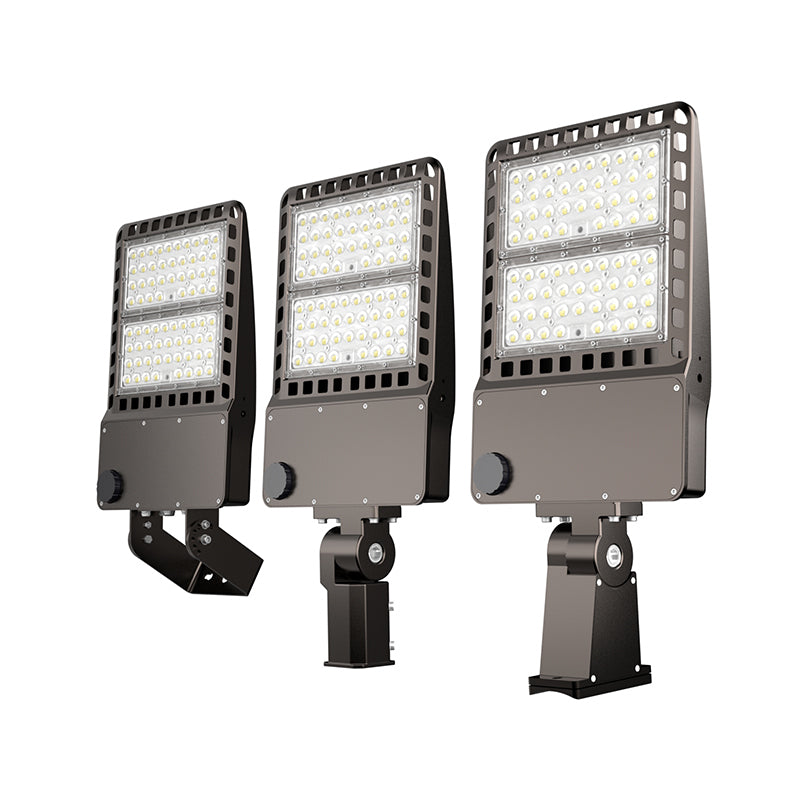

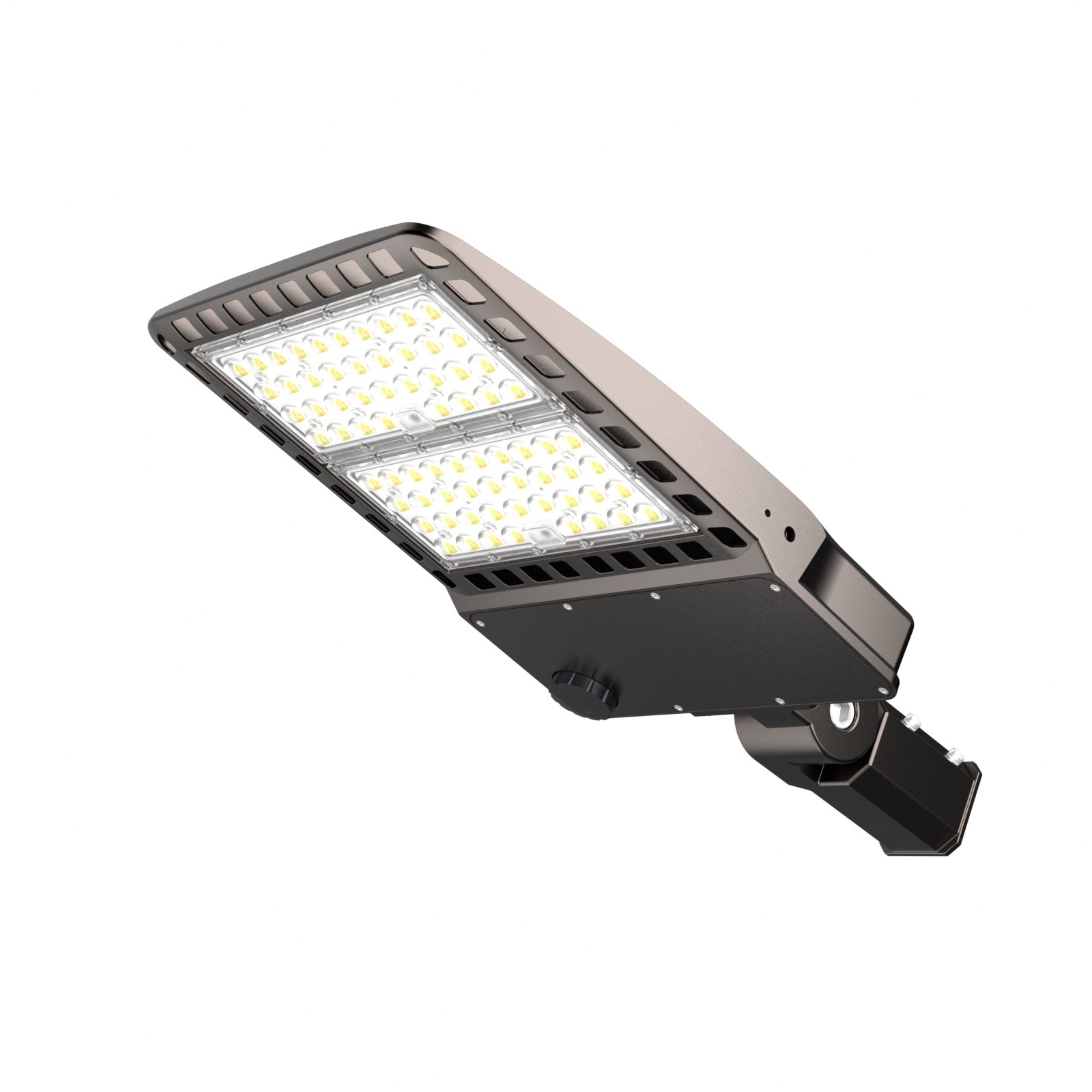

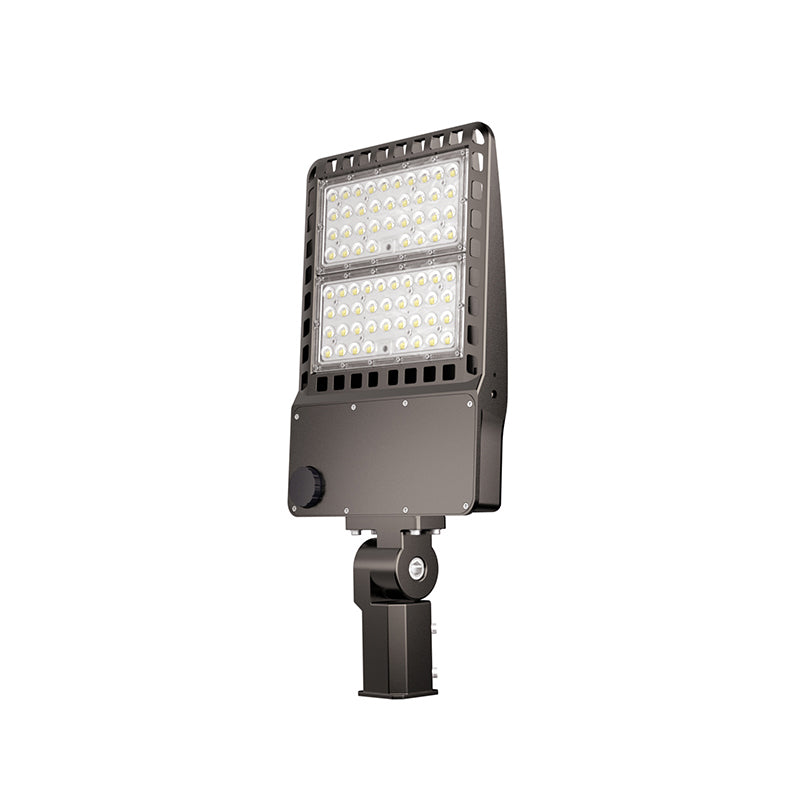

LED Shoebox/Area light with Selectable Wattage -300W Max - 120-347V

In stock
$181.00
5000K based with DLC 5.1,UL
200W/240W/300W Power Tunable
0-10V dimming / 5 years Warranty
45000LM /Average Life 50000H
Wattage
Color Temperature:
Pack

if u need to buy in bulk, contact us

LED Shoebox / Area light with Selectable Wattage

Introducing our new, cost-effective, high efficiency area lighting solution. The Selectable LED Shoebox Area Light is designed to withstand wind, vibrations, and the elements, while placing a light load on the energy grid—and your lighting bill. This fixture also qualifies for money-saving rebates and tax incentives.

  • Rugged, die-cast aluminum housing sealed against moisture and environmental contaminants
  • Low wind load thanks to compact, low EPA (effective projected area) design
  • 3G vibration rated to withstand higher levels of vibration from wind, machinery, traffic, or seismic activity without experiencing performance issues or damage
  • Install these lights near highways, bridges, industrial areas, and areas with heavy construction activity without worry
  • Available with or without a receptacle for the installation of a photosensor. (Receptacle version comes with a shorting cap.)
  • Wattage-selectable feature allows you to set the best light output for your application during installation
  • Flow-through ventilation model of thermal management ensures extended component life

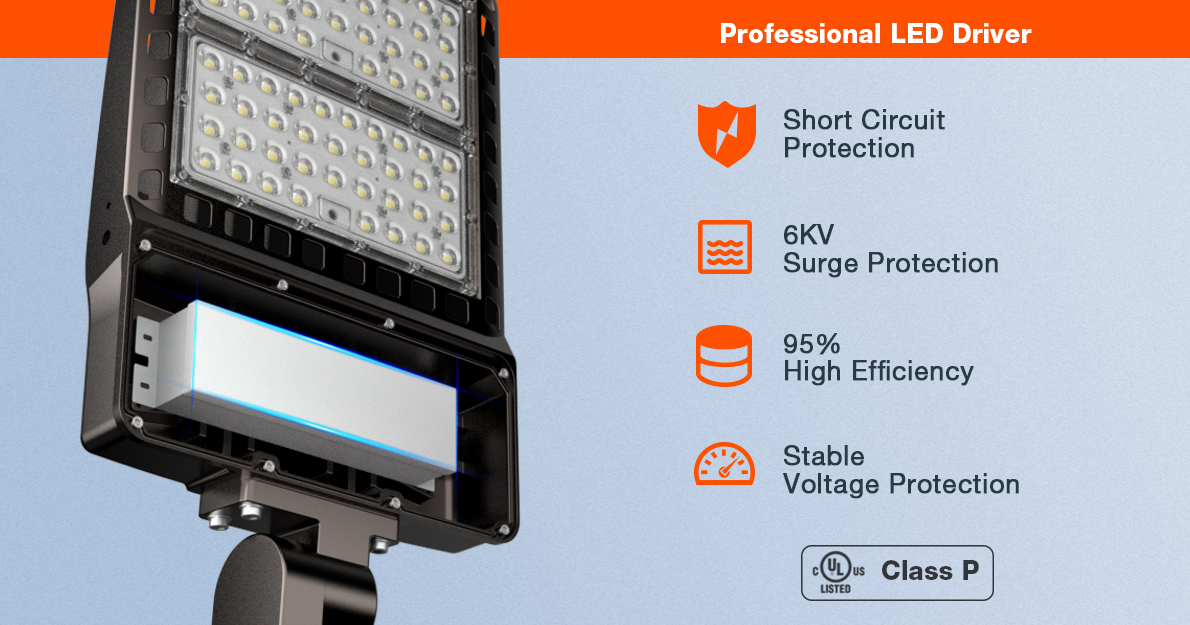

  • Built-in surge protection safeguards your investment
  • Contact us if you need EPA information for this light. Let us know the mounting configuration and tilt.

Order Selectable LED Shoebox Area Lights for your outdoor area lighting application today.
Wattage(s) 200W/240W/300W
Luminous Efficacy (lm/W) 150 lm/W
Average Lamp Life 50,000 hours
Color Temperature(s)
5000K
CRI 70
Dimming 0-10V
Base Type Fixture
Beam Angle PC lens for option - Type III /TypeIV/ TypeV
Working Environment Outdoor
Enclosure Rating Wet Location
Light Type Wired Fixture
IP Rating IP65 Rate
Input Voltage 120~347VAC
Temperature Rating -40°F to 113°F
Housing Material Rugged, sealed die-cast aluminum housing with 3G vibration rating
Housing Color Dark Bronze
Qty in Package 1

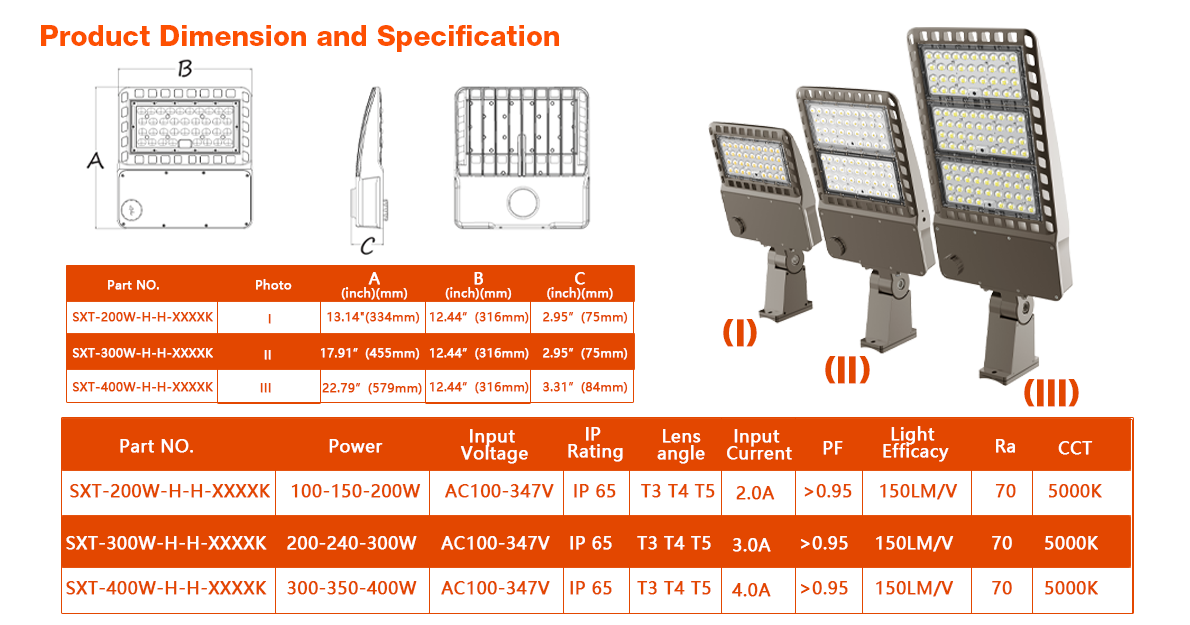

Dimensions 22.17 inch x 12.99 inch x 3.74 inch  (Without bracket)
Weight 14.1 LBS
Certification DLC 5.1，UL , ETL , FCC
Warranty  5 Years

Clip here to download detail PDF about the product

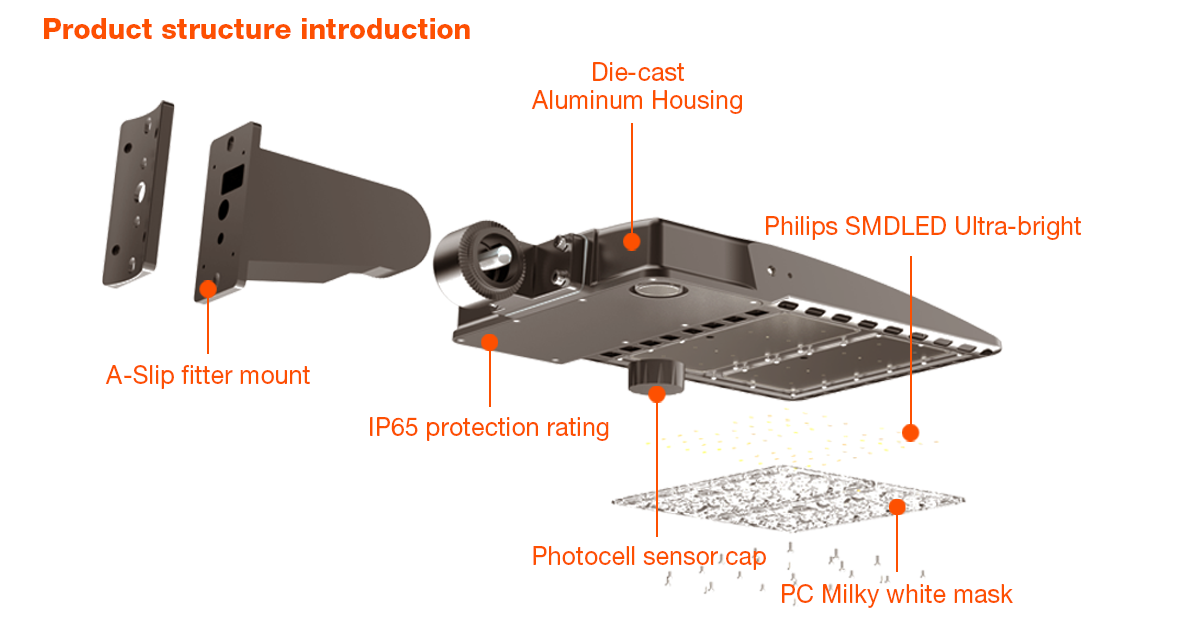

Product Detail

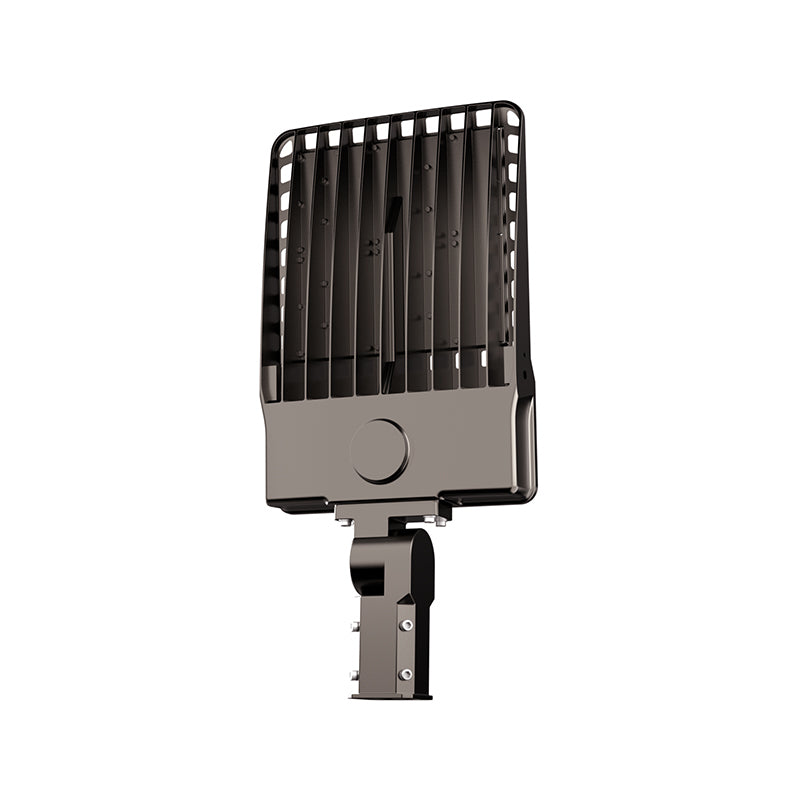

The heat sink is made with high conductive aluminum by fin shape die casting,free convection, maximum thermal transfer.Seamless desian ensures No possibility of any water leakage.

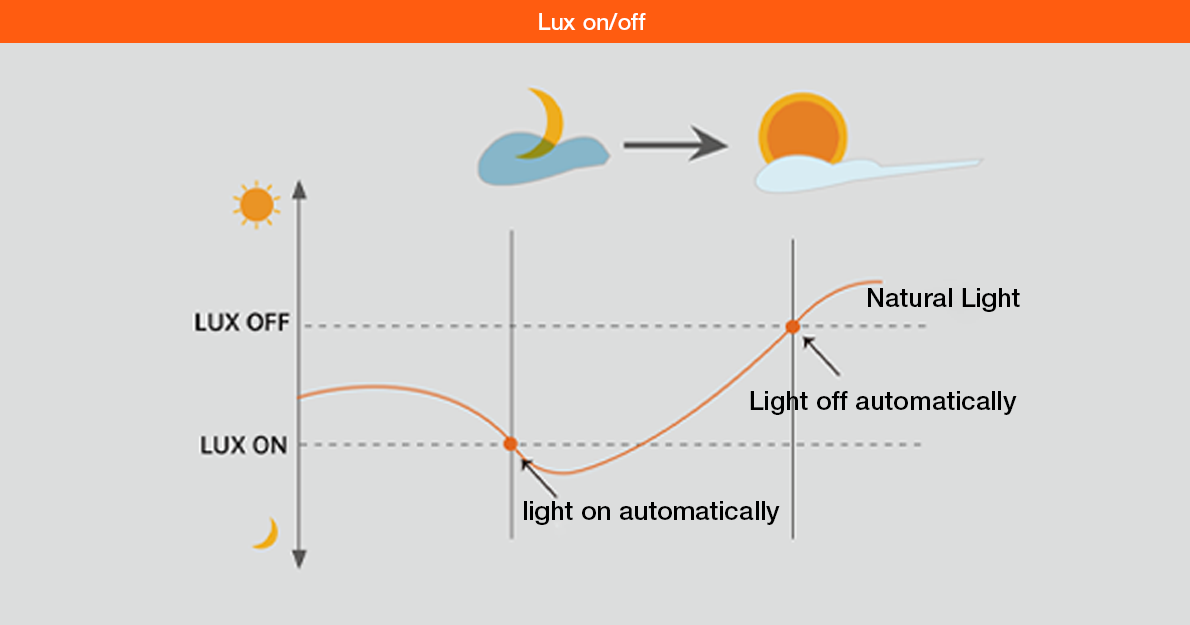

Dusk To Dawn - Photocell Sensor

With Daylight priority function,HS05 is able to differentiate artificial lightt brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level.
