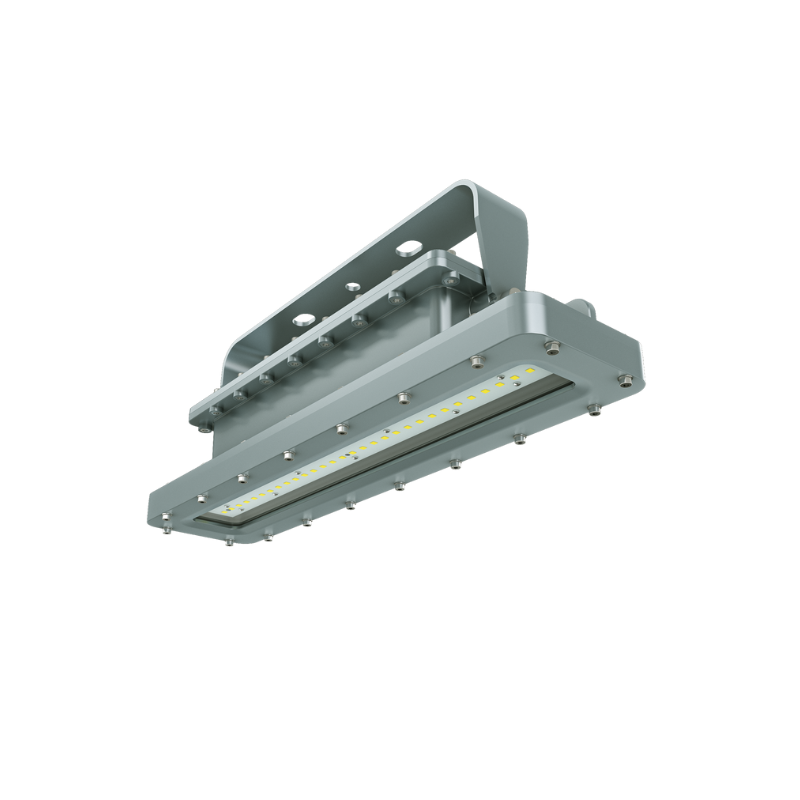

Explosion proof led high bay light 4FT-80W-11200LM

In stock
$716.00
IP66/IK10&-40°C to 65°C (-40°F to 149°F)
UL1598/UL1598A/UL844 Certified
5 Years Warrenty & Emergency Time for 1.5H
140LM/W /Average Life 50000H
Dimmable

if u need to buy in bulk, contact us

The explosion-proof light is the ideal choice for marine and hazardous area applications where a linear design is required. They can be used in locations where moisture, dirt, dust, corrosion, and vibration may be present, or in areas where wind, water, snow, or high ambient or high temperature may be present.

  • 0-10V dimming
  • Emergency function optional
  • Compact and rugged structure, excellent reliability
  • Various mounting options for different applications
  • High impact resistance with IK08/K10 certification
  • Copper-free aluminum housing, high corrosion resistance, and cooling performance

UL 844 Hazardous Locations

Class I Division 1, Group C, D
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E, F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 1, Group IIB
Class II, Zone 21, Group IIIC
UL 1598 Wet Locations
UL 1598A Marine Outside Type
UL 924 Emergency Lighting
Wattage(s) 80W
Luminous Efficacy (lm/W)
140lm/W
Length
4FT
Average Lamp Life 100000 hours
CCT
2700K-7000K
CRI
70
Dimming 0-10V Dimmable
Rating
IP66/IK08 (glass cover)/IK10 (with wire guard)/1000 hours salt spray
Beam Angle 120°
Working Environment Hazardous Locations
Light Type Wired Fixture
Input Voltage AC100-277V, AC200-480V
Temperature Rating
-40°C to +60°C (-40°F to +140°F)
Housing Material
Copper-free aluminum
Diffuser
Clear flat glass/ convex PC(clear or milky white)
Hardware Stainless Steel
Mounting
Ceiling, Wall, Pole, Pendant, Chain
Housing Color Gray
Qty in Package 1
Dimensions
53.94x14.17x11.42 inch
Certification UL1598/UL1598A/UL844
Warranty 5 Years
Emergency Time
1.5 hours
