Home » 80W HazLoc Explosion-Proof LED light Luminaires H Series-11200lumen
Uslighting

80W HazLoc Explosion-Proof LED light Luminaires H Series-11200lumen

In stock
$438.00
IP66/IK10&-40°C to 65°C (-40°F to 149°F)
UL1598/UL1598A/UL844 Certified
5 Years Warrenty & Emergency Time for 3H
140LM/W /Average Life 50000H &0-10V dimmable

if u need to buy in bulk, contact us

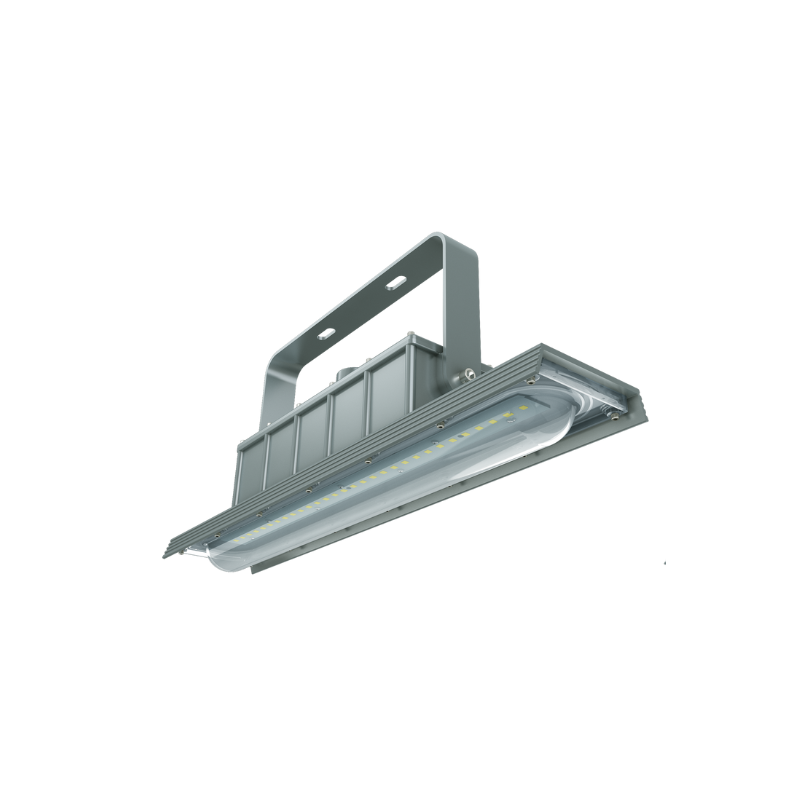

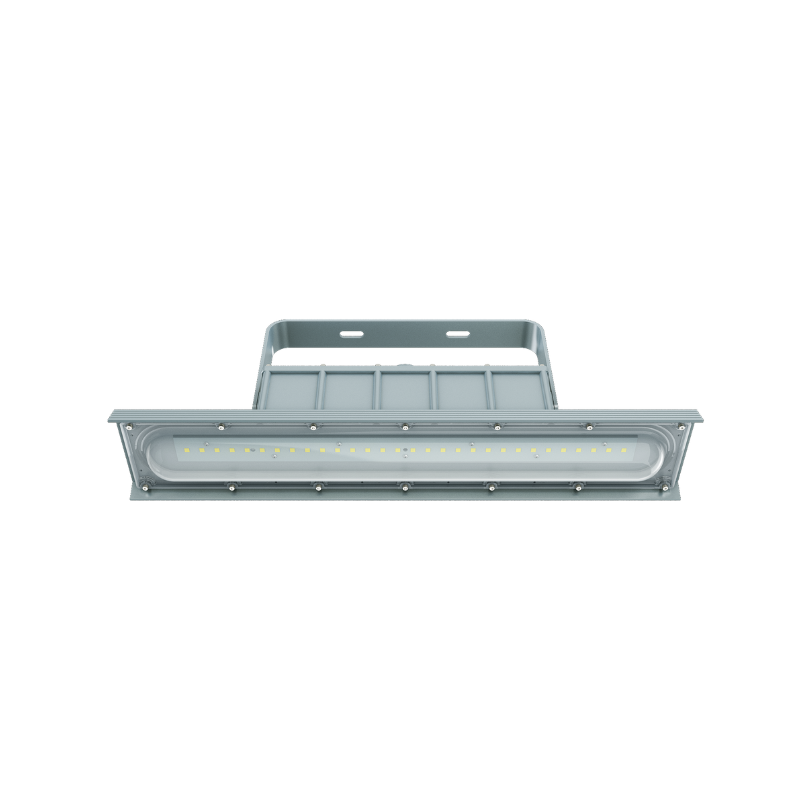

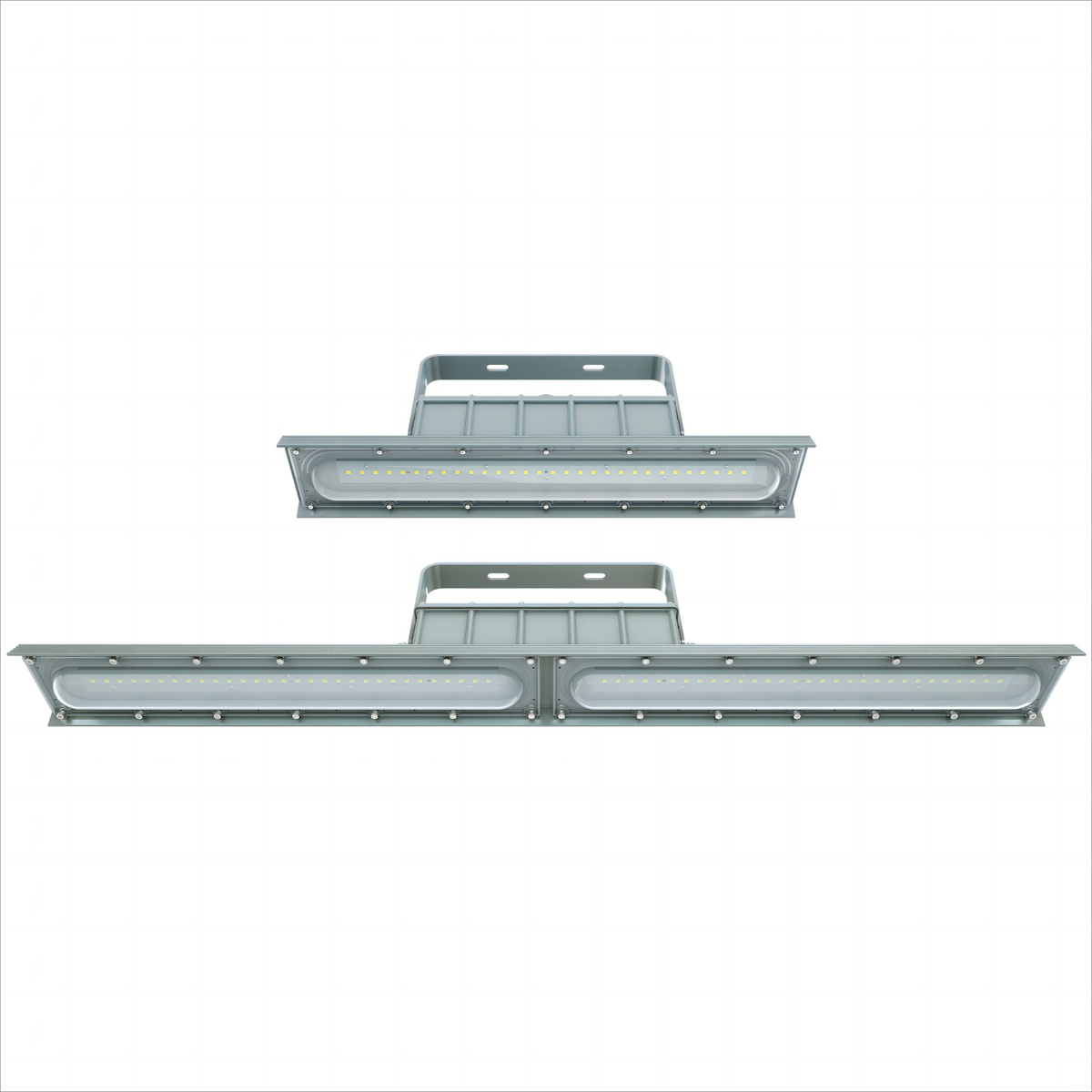

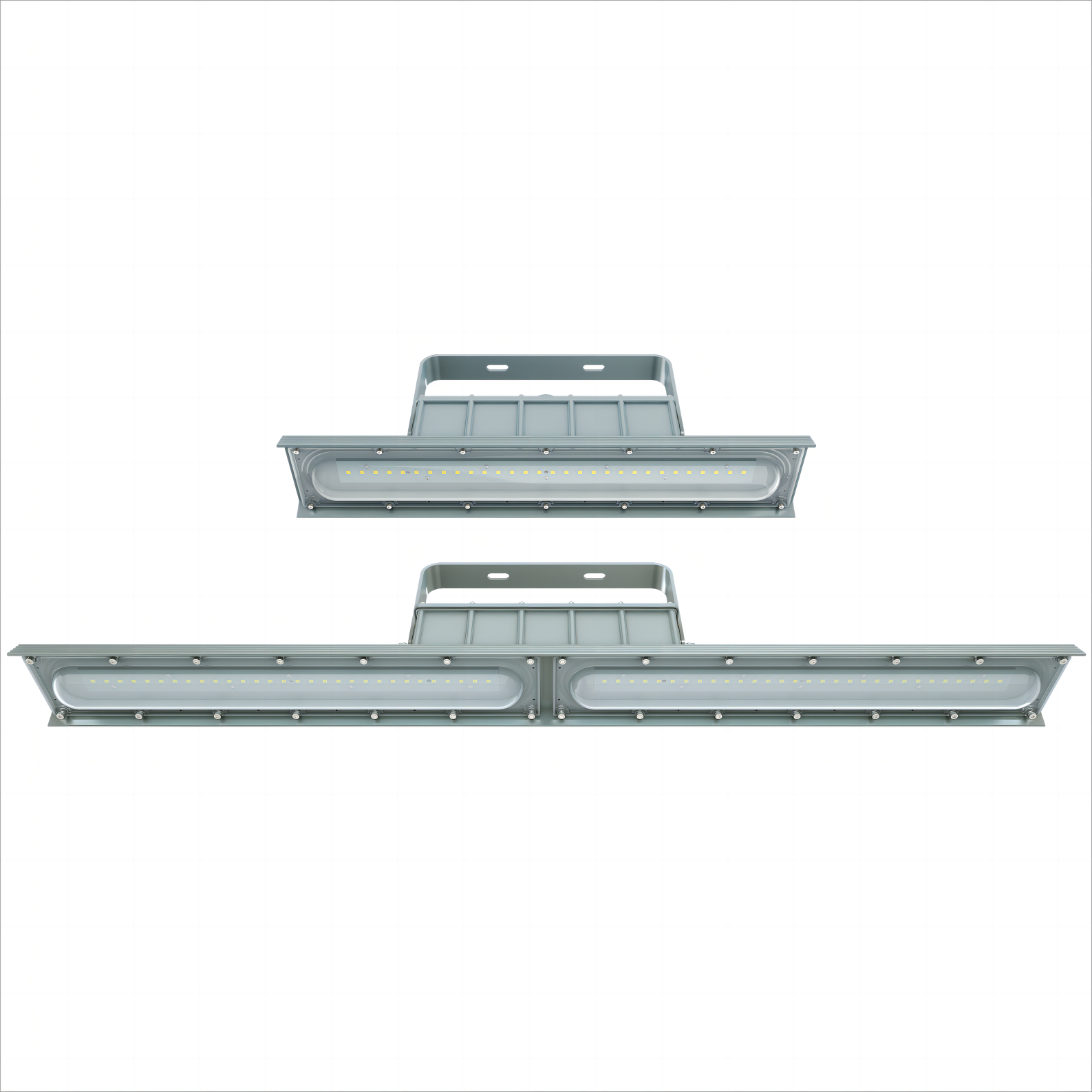

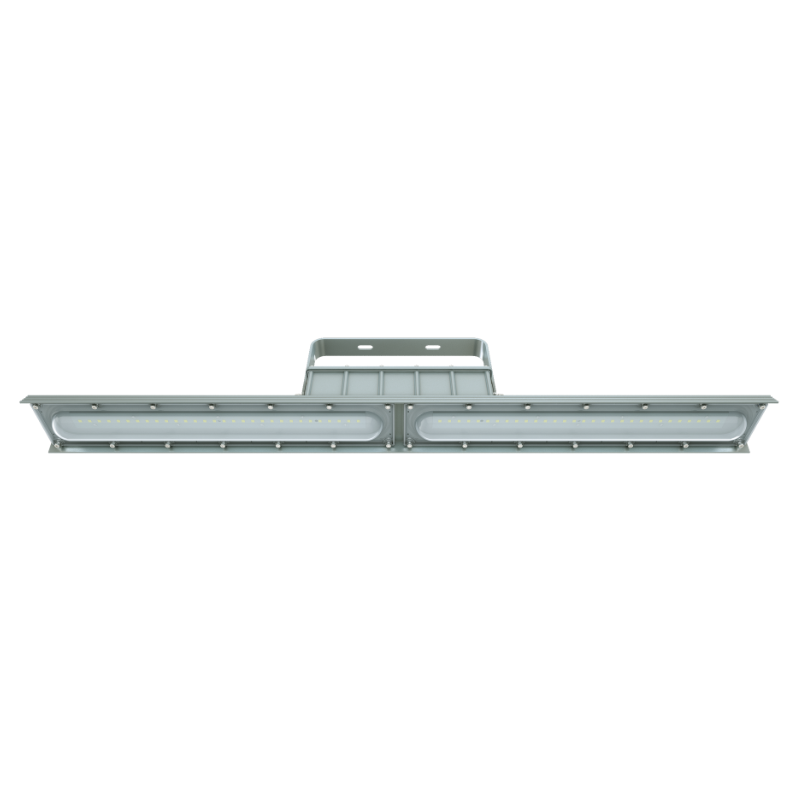

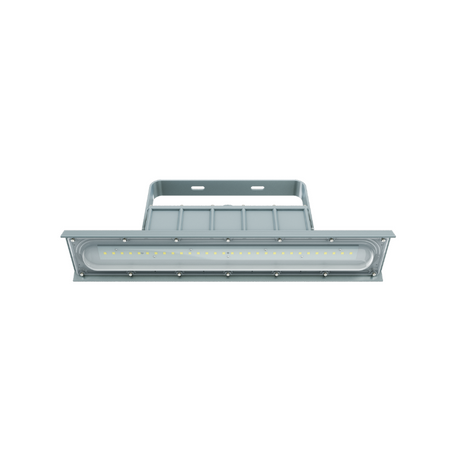

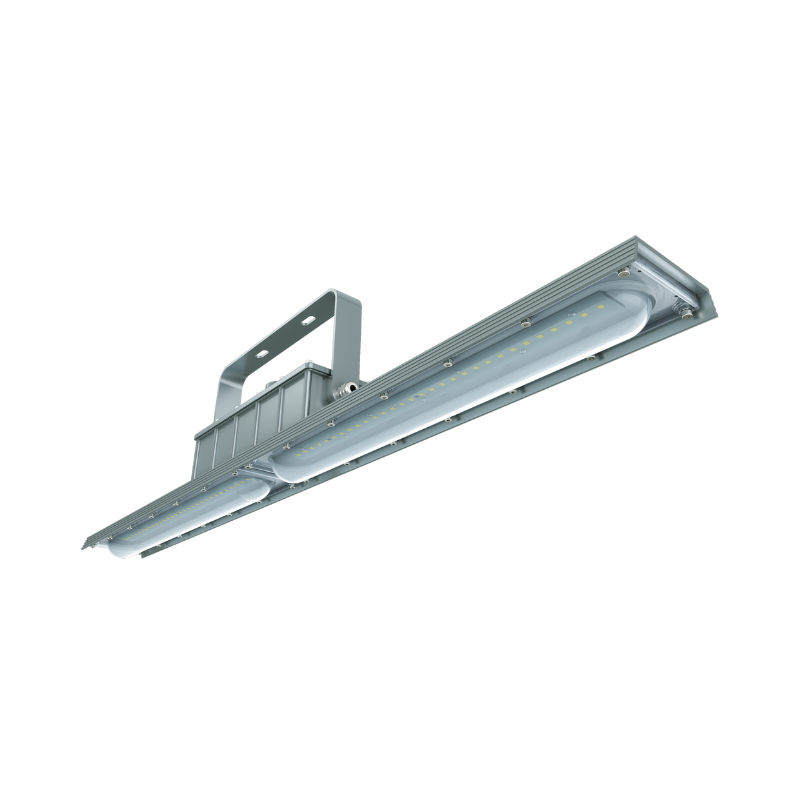

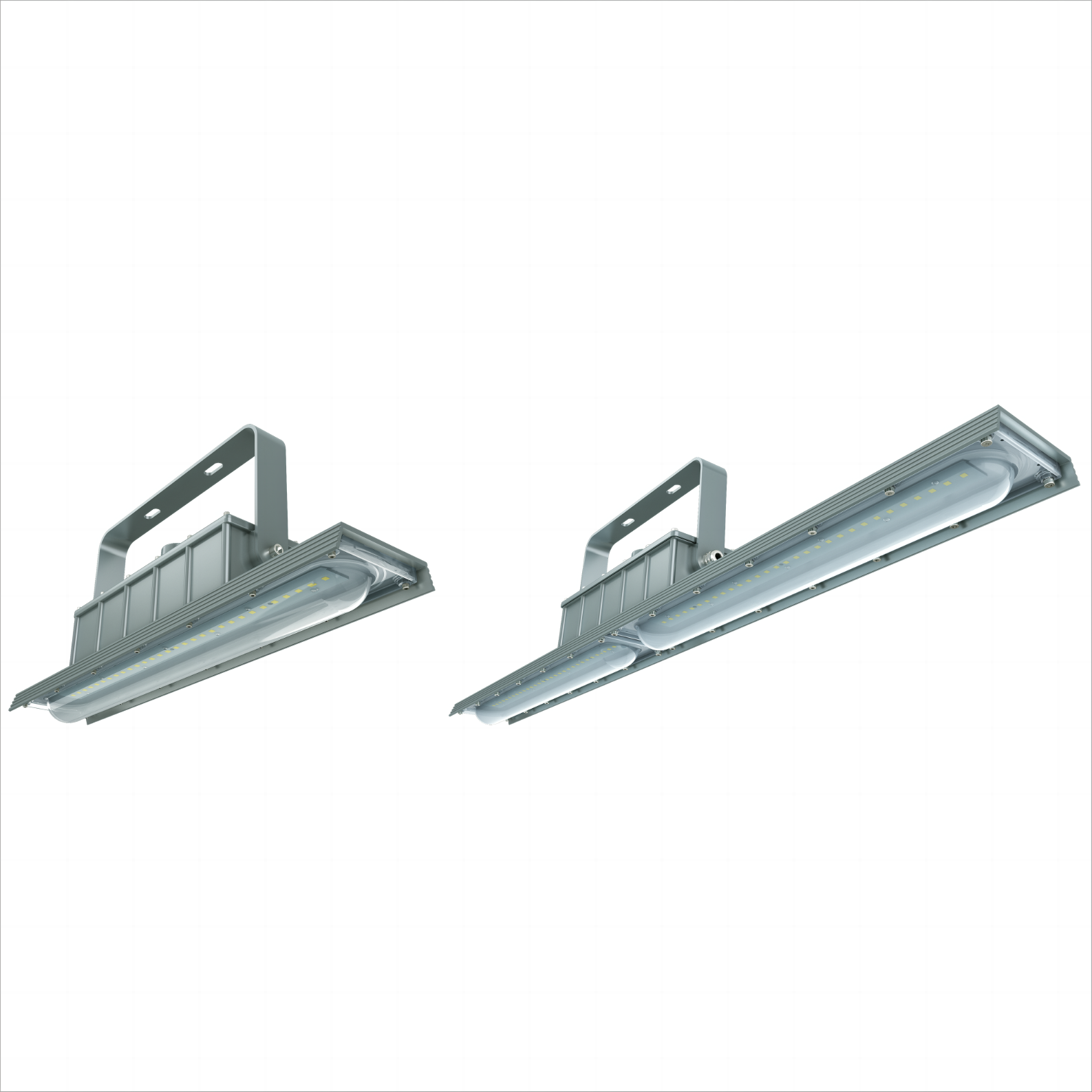

The 80W Explosion Proof LED Light is a premium lighting solution meticulously designed for industrial environments. Featuring an optional emergency function, this fixture has a compact yet rugged design that ensures unparalleled durability and reliability.

  • 0-10V dimming
  • Optional emergency function
  • Compact and rugged structure, excellent reliability
  • Various mounting options for different applications
  • High impact resistance with IK08/IK10 certification
  • Copper-free aluminum housing, high corrosion resistance, and cooling performance

UL 844 Hazardous Locations

Class I Division 2, Group A, B, C, D
Class II Division 2, Group F, G
Class III
Class I, Zone 2, Group IIC
Class II, Zone 21, Group IIIC
UL 1598 Wet Locations
UL 1598A Marine Outside Type
UL 924 Emergency Lighting
Wattage(s) 80W
Luminous Efficacy (lm/W)
140lm/W
Average Lamp Life 100000 hours
Color Temperature(s)
5000K
CRI
70
Dimming 0-10V dimmable
Rating
IP66/IK08 (glass cover)/IK10 (with wire guard)/1000 hours salt spray
Beam Angle 120°
Working Environment Hazardous Locations
Light Type Wired Fixture
Input Voltage AC100-277V
Temperature Rating
-40°C to 65°C (-40°F to 149°F)
Housing Material
Copper-free aluminum
Diffuser
Clear flat glass/ convex PC(clear or milky white)
Hardware Stainless Steel
Mounting
Ceiling, Wall, Pole, Pendant, Chain
Housing Color Gray
Qty in Package 1
Dimensions 47'x4.7'x9.5'
Certification UL1598/UL1598A/UL844
Warranty 5 Years
Emergency Time
3 hours



Clip here to download a detailed PDF about the product
