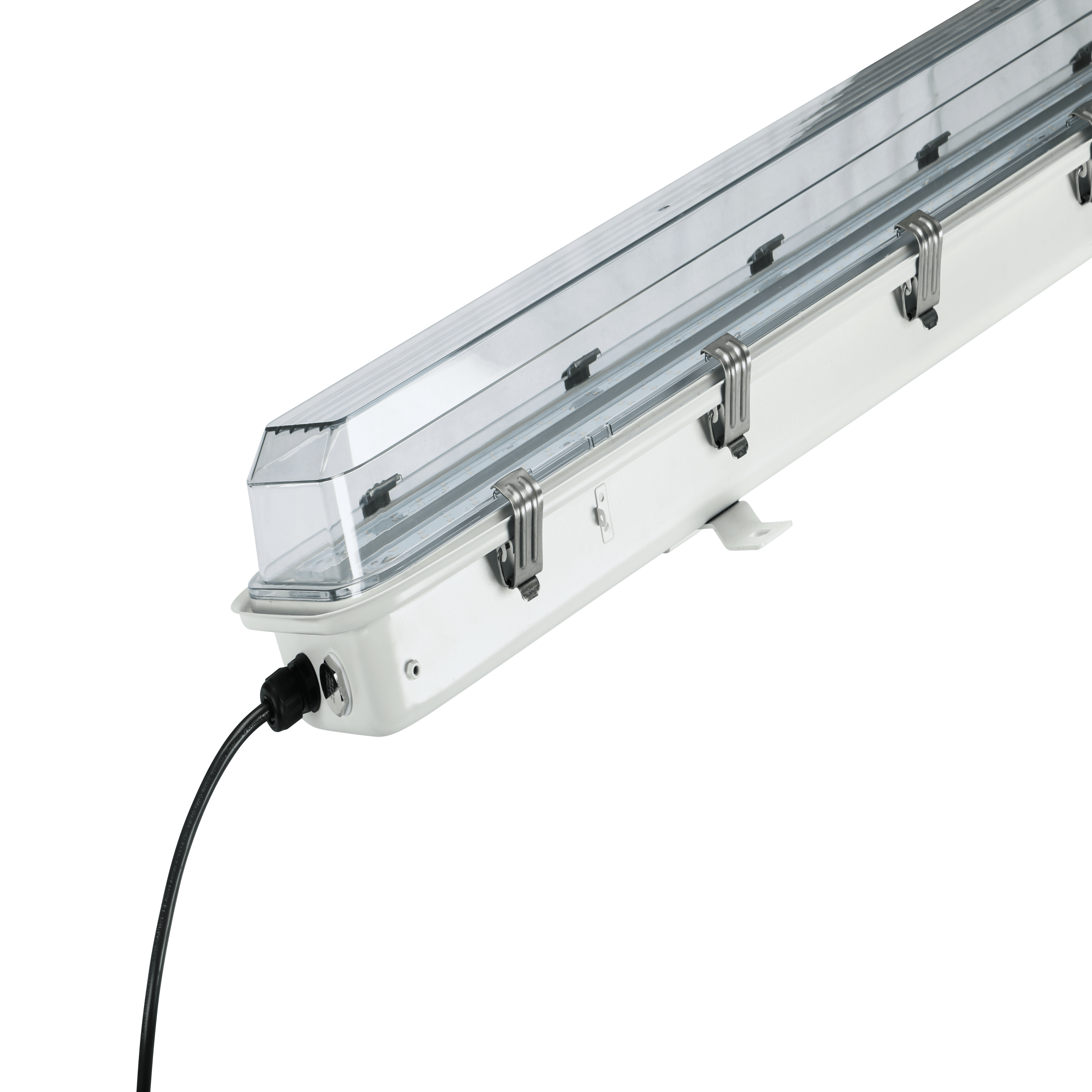

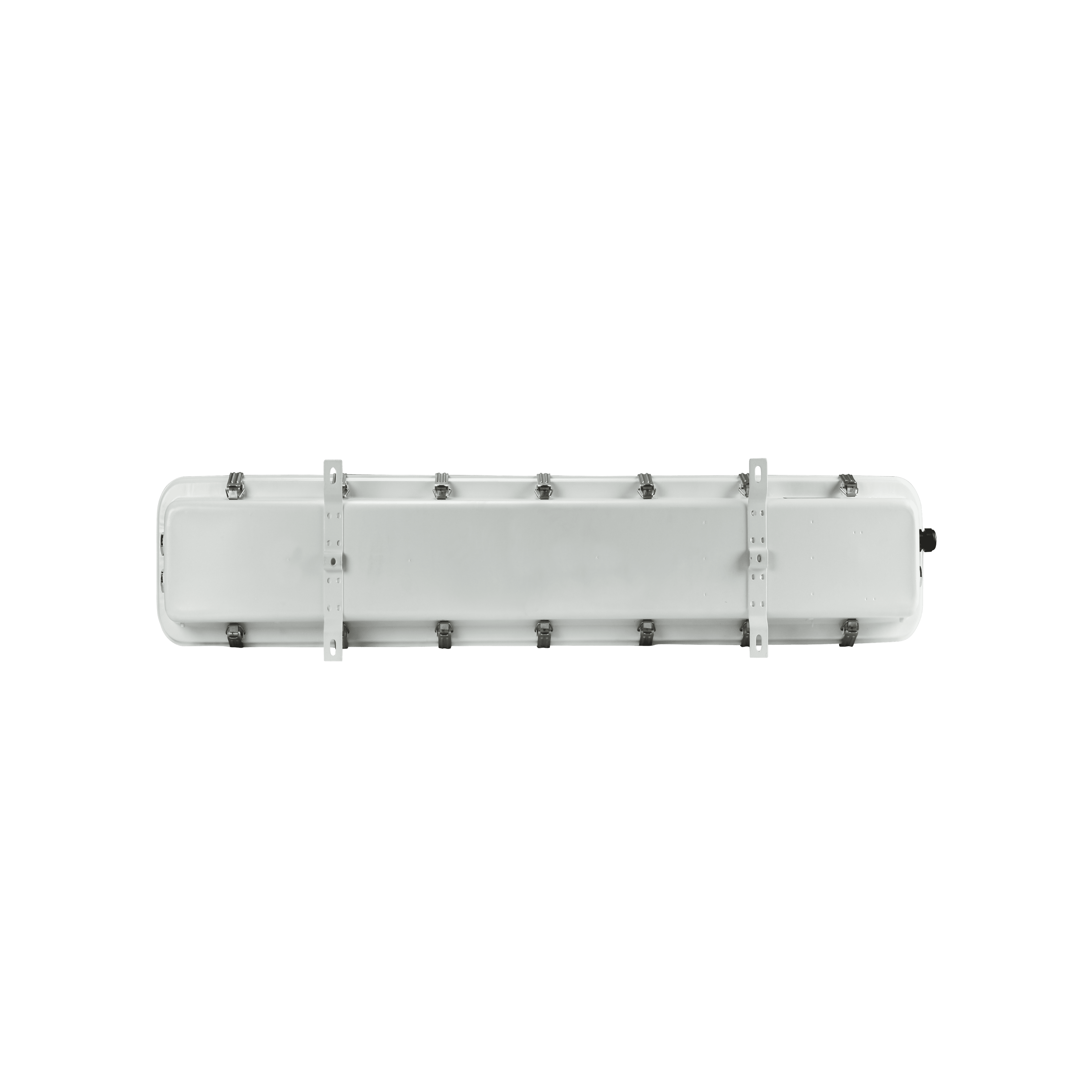

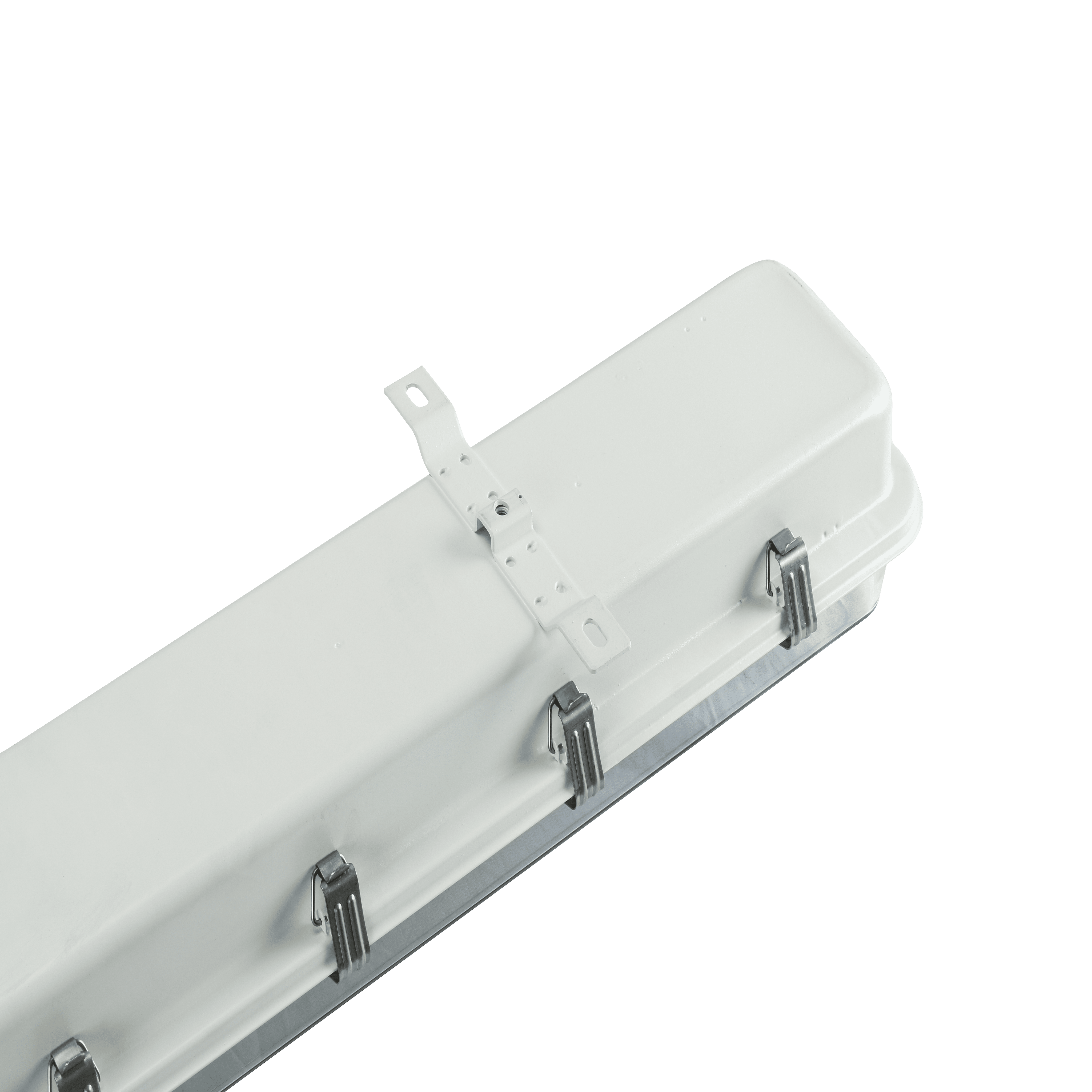

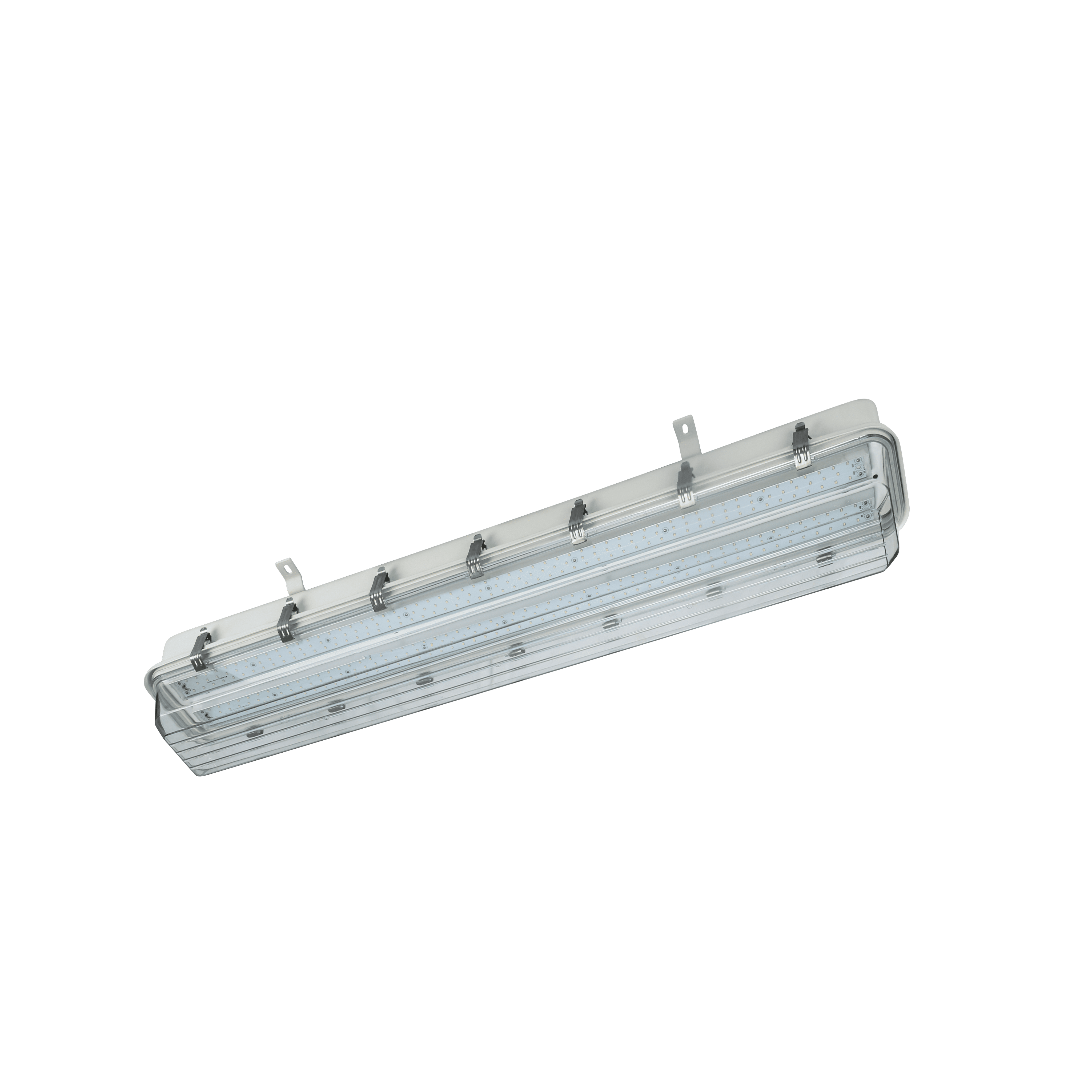

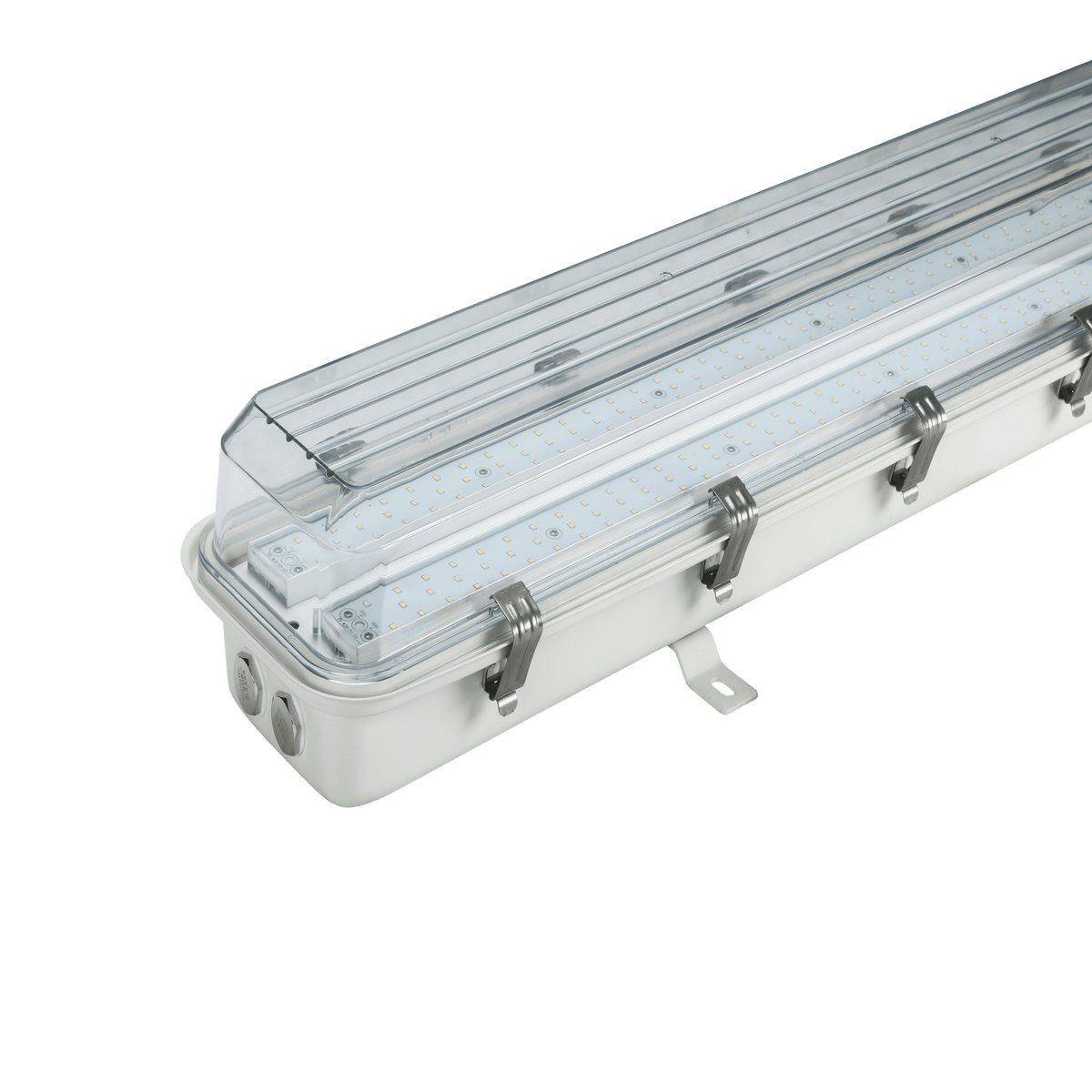

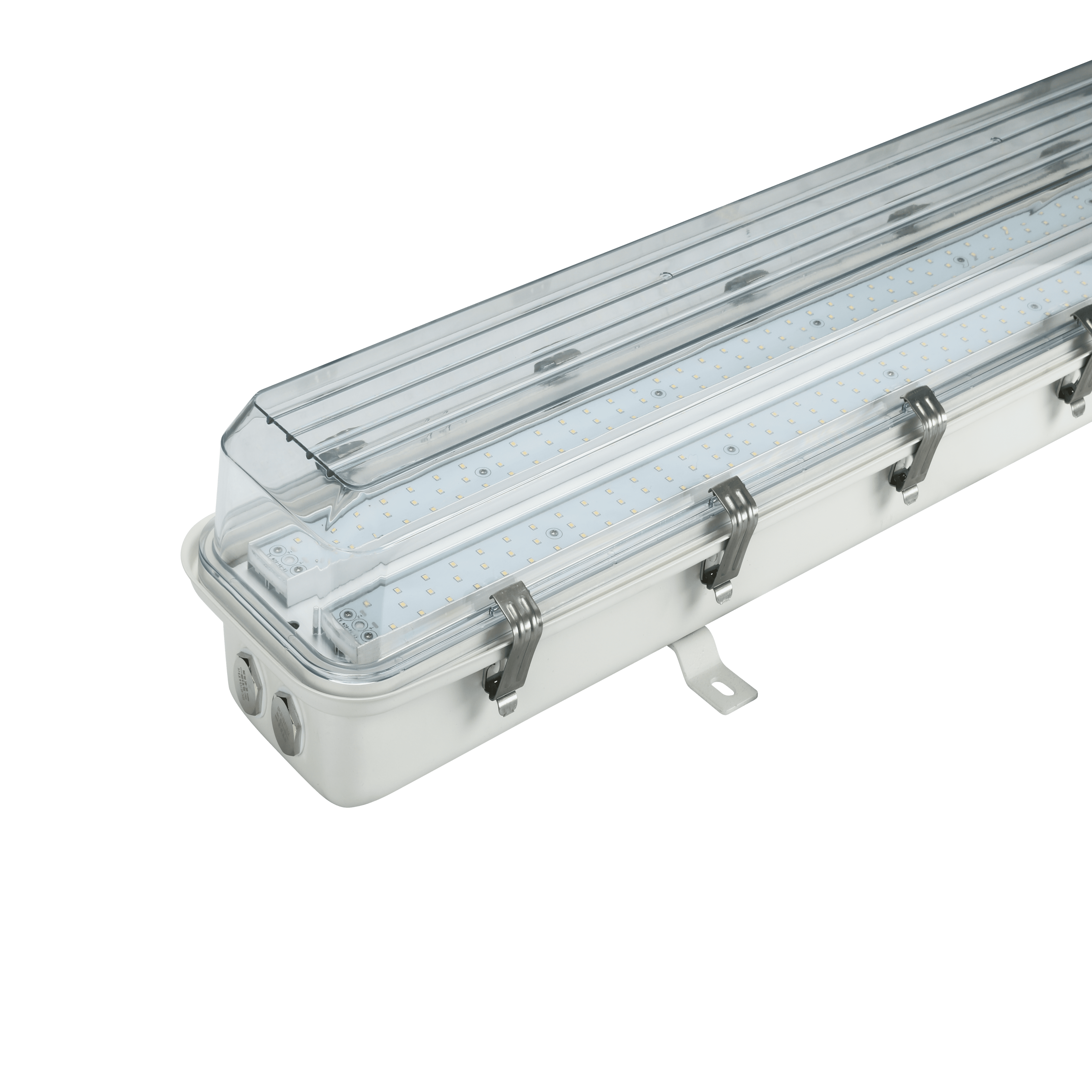

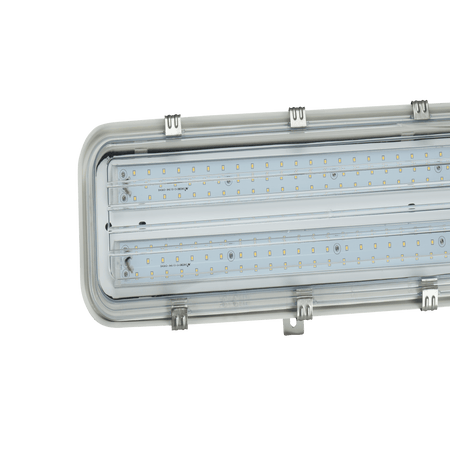

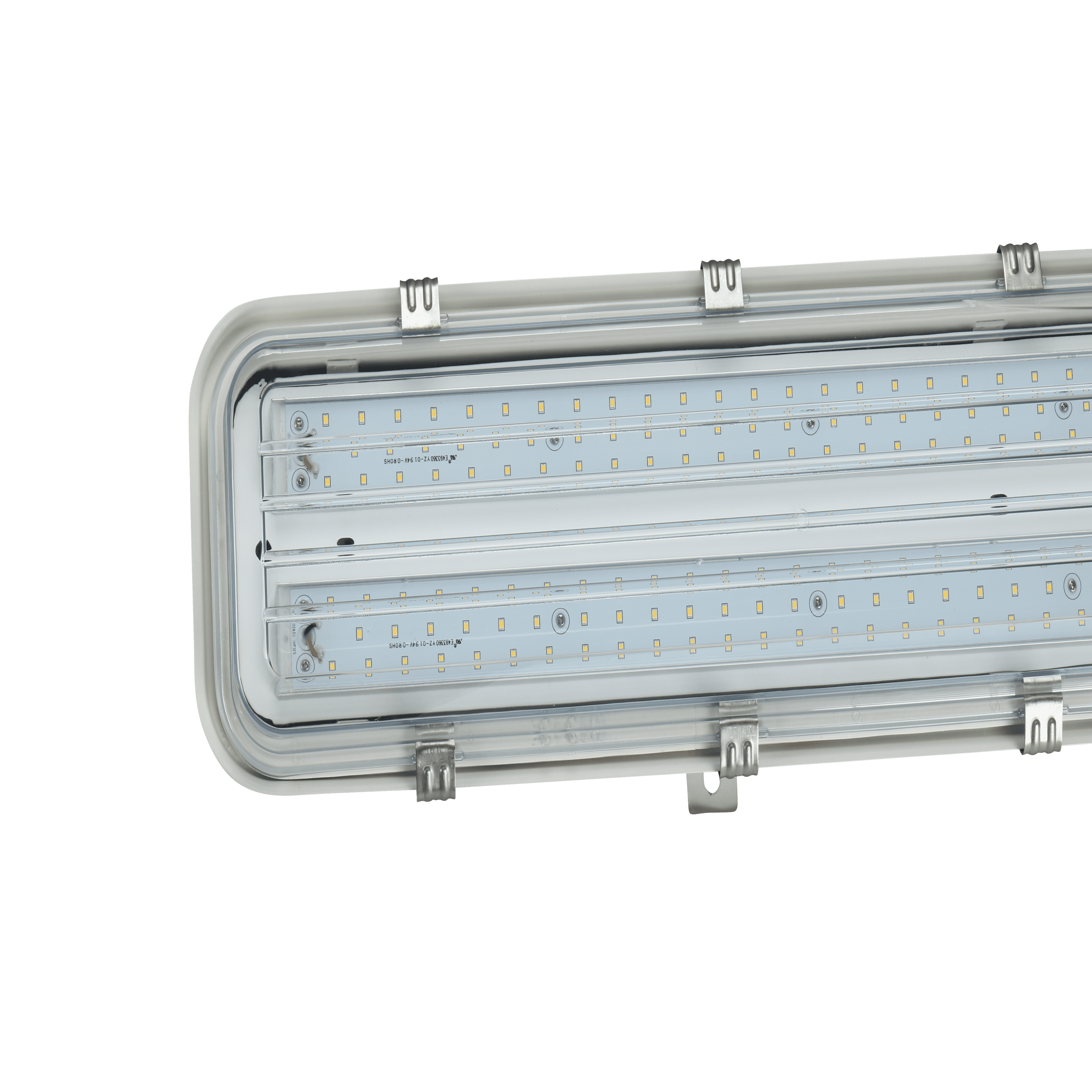

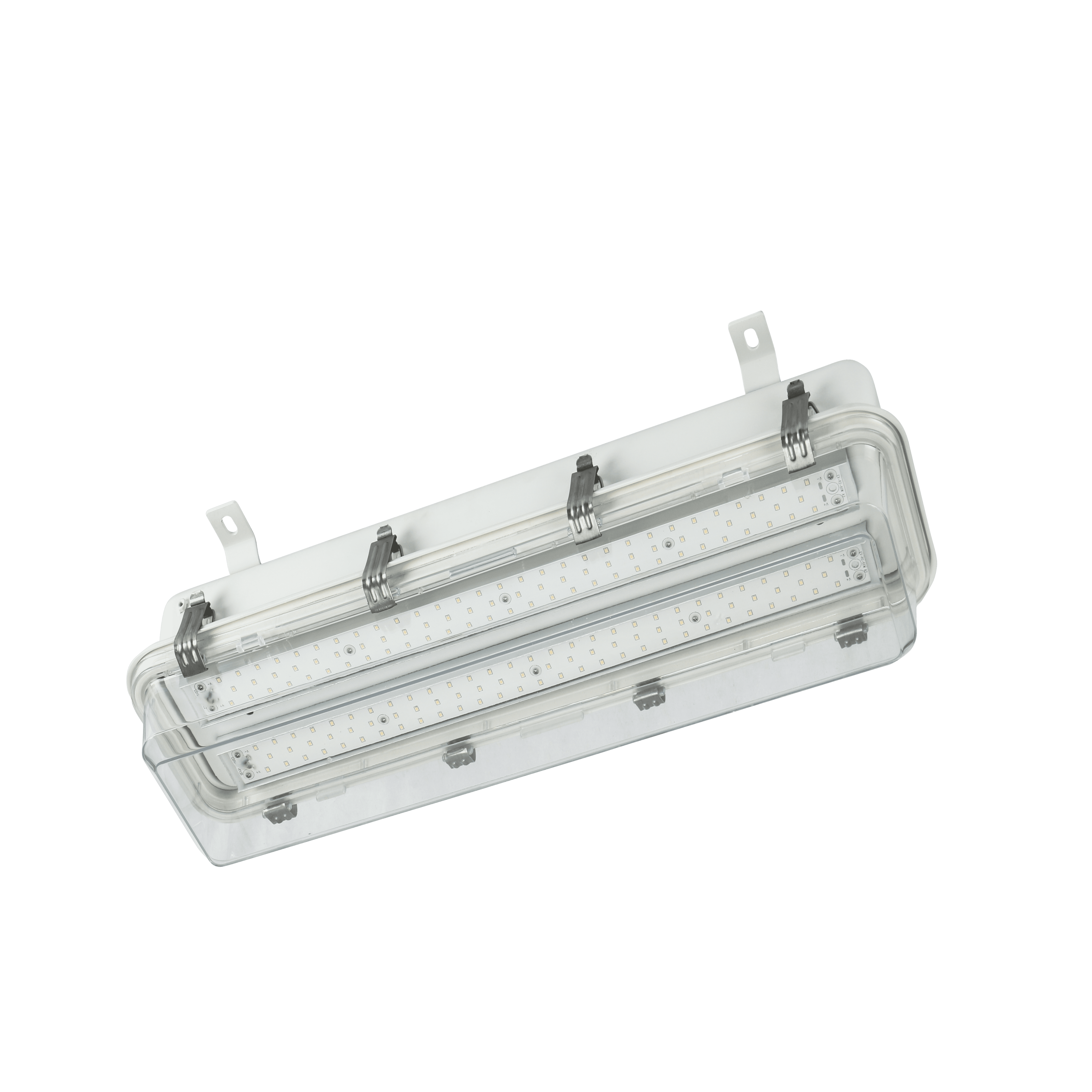

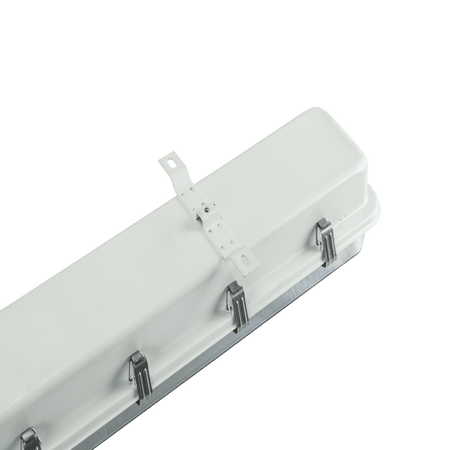

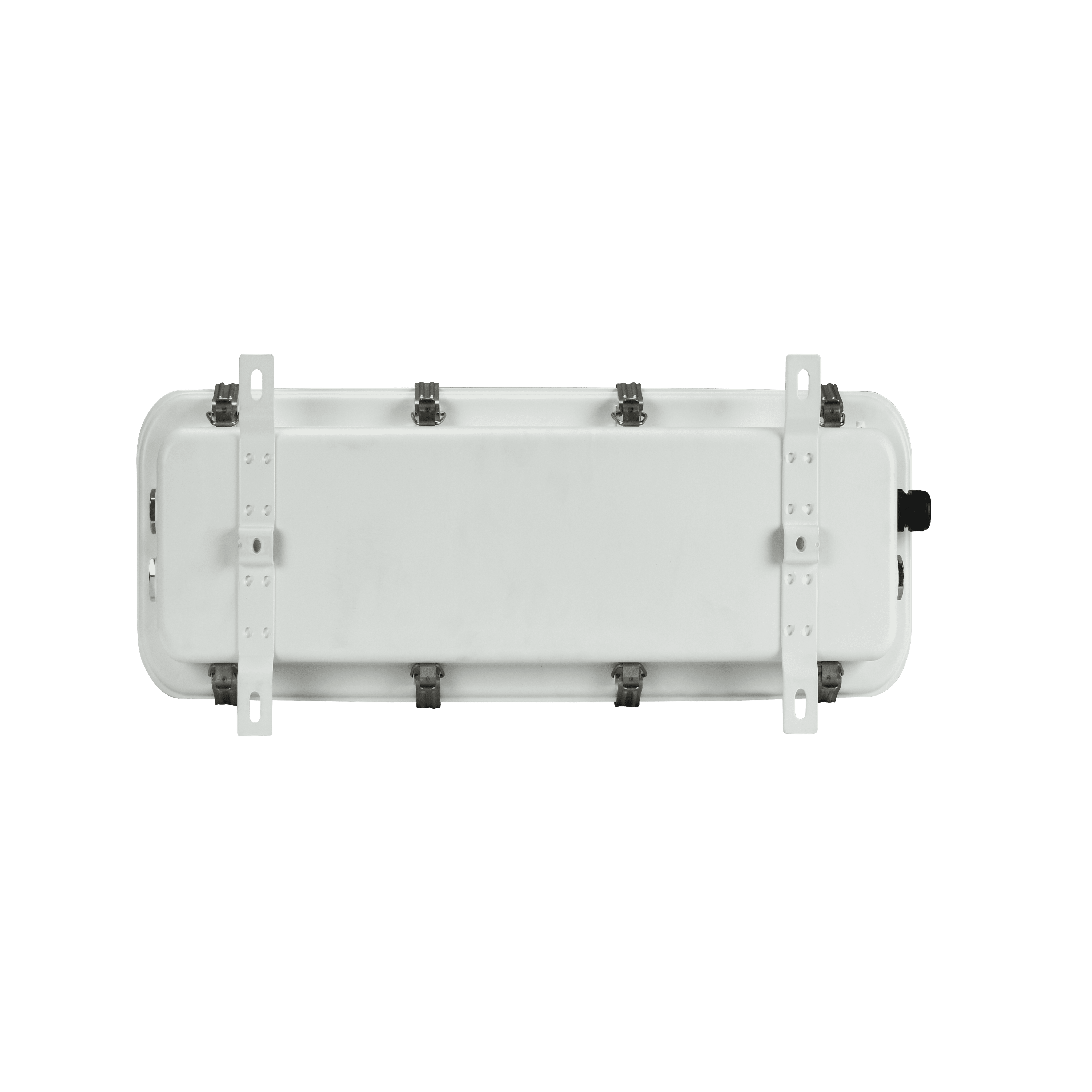

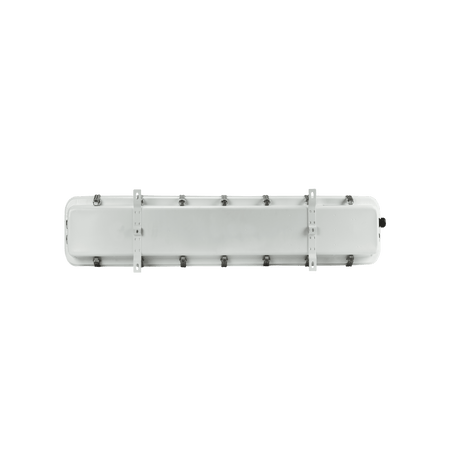

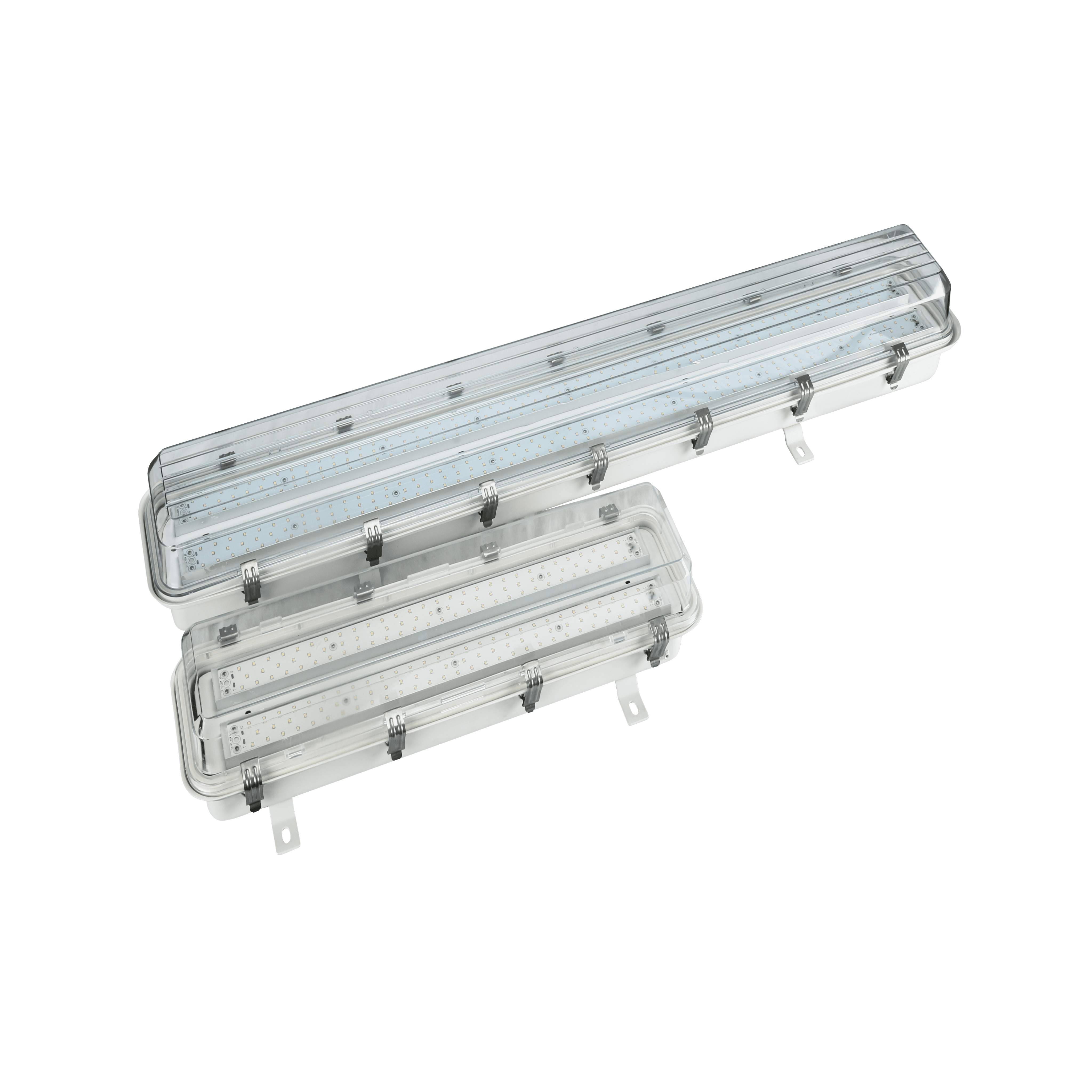

Led Linear Explosion-Proof Fixture2FT-30W-4200Lumens

In stock
$257.00
130LM/W /Average Life 50000H
IP66/IK08/IK10&-40°C to +45°C
5 Years Warrenty
UL844/UL1598/UL1598A
Color

if u need to buy in bulk, contact us

Compliance


ATEX Marking (Certificate Number:
CSANe 23ATEX1213X):
II 3GD
Ex db ec IIC T6/T5 GC
Ex tC IIIC T80°C/T95°C DC

UL844 Hazardous Locations
Class l, Division 2, Groups A, B, C, D
Class ll, Division 1, Groups E, F, G
Class ll, Division 2, Groups F, G
Class III
Class I, Zone 2 Group IIC
UL 1598 Luminaires
UL 1598A Marine Outside Type
UL 8750 LED Safety
UL924 Emergency Lighting
DLC 5.1
ETL
ABS
IP66
IK10
3G Vibration
1200 Hours Salt spray

Applications


√Locations requiring continuous and
consistent light levels
√Marine applications, like engine
rooms, decks and walkways
√Pulp and paper production facilities
√Water/wastewater treatment facilities
√ Petrochemical facilities
√ Offshore environments
Wattage(s) 30W
Luminous Efficacy (lm/W) 130 lm/W
Average Lamp Life 50000 hours
Color Temperature(s)
5000K
CRI ＞80
Dimming 0-10V
Base Type Fixture
Beam Angle 120°
Working Environment Harsh and hazardous locations
Protection IP66/IK10/3G vibration/1200 hours salt spray
Light Type HazLoc
Input Voltage 120~277VAC
Temperature Rating -40°C to +45°C for T6/T80°C
Housing Material  SUS304 stainless steel
Housing Color Milky white
Qty in Package 1
Dimensions 31.5'‘x9.9’'x6.9'‘
Weight 14.44lbs
Certification ETL,DLC
Warranty 3-year standard warranty for battery backup
5-year standard warranty for fixture
